Back in around 2012, Jamie Vicary pointed out to me that the string diagrams for adjointness, in the case where one of the objects is the monoidal unit, are very suggestive of synchronization in the pi calculus:
I found that I could interpret nearly all of the syntax of pi calculus in a compact closed bicategory and that reductions were exclusively due to adjointness. Here's the internal monoid object for parallel composition of processes:
Names are morphisms in or out of the monoidal unit with adjoints:
Parallel composition has an adjoint:
The communication reduction looks like this. We're sending a name z on a name x (green). We're listening on a name x for a name we'll call y (purple); when we get one, we'll do Q. The result of the two processes interacting is Q with z replacing y. Note that y is a bound variable, so its name doesn't appear anywhere in the diagram.
The problem is that there are more reductions in the compact closed bicategory than in the pi calculus. For example, if another copy of x? occurred in Q, x! could synchronize with that one instead, which is not allowed in pi calculus.
One way of dealing with this problem is by compiling the pi calculus terms down to Yoshida's combinators, where there are no "closures". Instead, as execution progresses, links between distinct names are created.
I've got string diagrams for each of the combinators. The remaining issue is how to introduce fresh names. Recent work on second order algebraic theories look promising. It would take some work to adapt it to the compact-closed-bicategory case instead of the cartesian-category-with-exponentiable-object case.
If anyone's interested in exploring this, let me know and we can start a stream.
Mike Stay said:
I've got string diagrams for each of the combinators. The remaining issue is how to introduce fresh names. Recent work on second order algebraic theories look promising. It would take some work to adapt it to the compact-closed-bicategory case instead of the cartesian-category-with-exponentiable-object case.
Maybe I can rephrase to see if I understand? It looks like compact-closed bicategories play a similar role (though perhaps not completely analogous) for the π-calculus as do CCCs for the STLC? If this is the case, then we wouldn't expect to use compact-closed bicategories instead of second-order algebraic theories: each SOAT would induce a compact-closed bicategory. For the STLC, for instance, we have an equivalence between models for the SOAT for the STLC and CCCs.
I'm not familiar; is there a standard internal language correspondence for the π-calculus already?
In any case, this seems very interesting.
so what should we make, #concurrency ?
It could go in the #theory: type theory stream for the time being?
I'd read a concurrency stream, although I think it should be separate from type theory
@Mike Stay I think that looks interesting. It reminds me of "interaction nets" , which, iirc, also admit interpretation in a compact closed bicategory.
@Nathanael Arkor nope! There's no satisfactory, Curry-Howard-Lambek sort of thing for the pi-calculus
Christian Williams said:
so what should we make, #concurrency ?
Sounds good to me.
Chad Nester said:
Mike Stay I think that looks interesting. It reminds me of "interaction nets" , which, iirc, also admit interpretation in a compact closed bicategory.
Thanks! The immediate difference I see is that interaction nets are strongly confluent, while pi calculus is certainly not.
Mike Stay said:
Chad Nester said:
Mike Stay I think that looks interesting. It reminds me of "interaction nets" , which, iirc, also admit interpretation in a compact closed bicategory.
Thanks! The immediate difference I see is that interaction nets are strongly confluent, while pi calculus is certainly not.
well, there is Bellin's very old work https://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.33.3948 and not so old work
On the π-calculus and distributed calculi for co-intuitionistic logic too!
o_o
is a compact closed bicategory one where every 1-cell has a left & right adjoint, or what?
oh, it's more directly analogous?
@Mike Stay i dont follow what the diagrams have to do with adjointness or the pi calculus? :sweat_smile: would you be willing to explain starting a little earlier what the correspondence is between pi-calculus objects and categorical objects?
& where is a monoid object coming in?
The pi calculus is a toy programming language invented by Robin Milner in the 90s, a successor to CCS. The grammar pi calculus involves both names (which I denote by an object N) and processes (P). P forms a commutative monoid with multiplication | and identity 0. Processes can also be formed by sending (!:N ⊗ N -> P), receiving (?:N ⊗ (N -> P) -> P) and generating a fresh name (ν: (N -> P) -> P).
The one reduction rule is the "comm" rule:
comm: x!(z) | x?(y).Q => Q { z / y }
oh i know the pi calculus
Note that the pi calculus is not confluent:
x!(z1) | x!(z2) | x?(y).Q
may reduce either to
x!(z2) | Q { z1 / y } or x!(z1) | Q { z2 / y }.
OK, so what's your question?
well, how are you corresponding pi-calculus objects to categorical objects? each term becomes a 1-cell, or what?
and if so, what is the type of the 1-cell given by a term?
Each term is a 1-cell of type P.
"of type P"?
you mean from the monoidal unit to P, or what?
Closed terms (those with no free variables/names) are morphisms from the monoidal unit to P, yes.
kk
oh, so more generally, do you do like.... N ⊗ N ⊗ N → P for sth with 3 free variables/names?
Yes.
ohhh, ok, & then the adjointness stuff plays in because you can't directly compose, reflecting how you don't directly substitute?
does N have to be self-dual or something?
In a compact closed bicategory, all objects have duals.
yeah, but an object's dual might not be canonically isomorphic to it
But there are cap and cup that let us draw string diagrams.
yeah, i have familiarity with compact closed 1-categories
Prof is a compact closed bicategory.
Cocont (categories, cocontinuous functors, nat'l transformations) is equivalent, but composition is strict, so easier to think about.
i have your paper pulled up in another window :)
the pages and pages of coherence conditions are terrifying :scream:
Ah, but there are patterns in the coherence laws!
i was hoping so :>
someday i will get around to learning them...
but in any case—so, hmm, this treatment sort of suggests a distinction between names and variables-for-names, doesnt it?
E.g. the associahedra have a Catalan number of vertices and lower associahedra as "faces". The unitors go between two associahedra, the second with one fewer object.
catalan numbers!
Is there an established internal language for compact closed categories? E.g. as some kind of multiplicative fragment of classical linear logic?
abstract index notation :>
It would be interesting to derive a relationship between the π-calculus and linear logic, if both can be used as internal languages of compact closed bicategories.
half serious
distinction between names and variables
Milner himself in later treatments refactored "new" and "input" into "fresh" and lambda. In that way of looking at it, names are what variables hold.
yeah thats basically what i figured
sounds like good hygeine
like assignables vs variables
hmmmmm...... but: is it just me, or is there an awful lot of cartesianness to the pi calculus which is not available in this setup?
names would have to be a comonoid wouldnt they?
@Nathanael Arkor Wadler came up with a calculus for linear logic that looks like a certain synchronous pi calculus.
is that one of the later dual calculi
names would have to be a comonoid
Yes, because pi calculus allows you to duplicate names, names have to be a comonoid. I haven't worked through all the details of that.
Mike Stay said:
Nathanael Arkor Wadler came up with a calculus for linear logic that looks like a certain synchronous pi calculus.
Very interesting: Propositions as Sessions (https://homepages.inf.ed.ac.uk/wadler/papers/propositions-as-sessions/propositions-as-sessions.pdf).
god i should catch up on wadler's linear stuff
ive read like 1 and a half papers of it...
Abramsky, of course, wrote "Computational Interpretations of Linear Logic", in which he gives "process calculi", but it's not pi calculus by any means.
oh i know that one super well :sunglasses:
it's the basis of one of the projects im doing for my degree
it's in my backpack right now lol
ooh yeah i actually remember thinking before about the fact that the communication rule in PE₂ corresponds to reducing a cut connected to an axiom link in a proof net & it looks suspiciously like a yanking
& then i went and thought "it's 'communication'... and it's a yanking... hahahahaha it's quantum teleportation"
i completely forgot abt that
@Mike Stay ok, im looking again at the diagrams and i'm still finding them confusing :\
in the first one: what does the labelling on the wires mean? should they say "N" instead of "x"?
but "x" isn't a pi calculus process anyway, is it?
or in the 3rd one: where is N ≅ N* ⊗ P coming from?
hm, are the diagrams depicting some kind of async calculus w/ different types from the ones you wrote as in
Processes can also be formed by sending (!:N ⊗ N -> P), receiving (?:N ⊗ (N -> P) -> P) and generating a fresh name (ν: (N -> P) -> P).
sarahzrf said:
is a compact closed bicategory one where every 1-cell has a left & right adjoint, or what?
This was already answered by now but anyway:
"Compact closed" hints at symmetric monoidal - for example a merely monoidal category where every object has a left & right adjoint is not called compact closed, it's called rigid. So what you're talking about deserves to be called a rigid bicategory (though I've never heard anyone say that).
A compact closed bicategory is a symmetric monoidal bicategory where every 1-cell has a left pseudoadjoint, or equivalently a right pseudoadjoint.
@Mike Stay wrote about these in his thesis:
Abstract. A compact closed bicategory is a symmetric monoidal bicategory where every object is equipped with a weak dual. The unit and counit satisfy the usual "zig-zag" identities of a compact closed category only up to natural isomorphism, and the isomorphism is subject to a coherence law. We give several examples of compact closed bicategories, then review previous work. In particular, Day and Street defined compact closed bicategories indirectly via Gray monoids and then appealed to a coherence theorem to extend the concept to bicategories; we restate the definition directly.
We prove that given a 2-category T with finite products and weak pullbacks, the bicategory of objects of C, spans, and isomorphism classes of maps of spans is compact closed. As corollaries, the bicategory of spans of sets and certain bicategories of "resistor networks" are compact closed.
Regarding Wadler's "propositions ad sessions", while he uses pi-calculus like names for the terms of his type theory, I don't think it has all that much to do with the pi calculus.
Also there's a slightly earlier paper called "the logic of message passing" by Cockett and Pastro that gives a more powerful / general system, capturing Wadler's work as a degenerate case (including the interpretation of the multiplicatives). Unfortunately it's a pretty daunting paper to read.
Very much in the line of work started by Bellin and Scott though!
@Mike Stay could you change the topic of your first message in this thread? to break it off from general "pictures".
We can start the concurrency stream tomorrow.
Chad Nester said:
Mike Stay I think that looks interesting. It reminds me of "interaction nets" , which, iirc, also admit interpretation in a compact closed bicategory.
Do you have a reference for this? I've been working on interaction nets recently and, while a bicategorical interpretation also seemed to make sense to me, I did not find any paper on the topic.
Mike Stay said:
The problem is that there are more reductions in the compact closed bicategory than in the pi calculus. For example, if another copy of x? occurred in Q, x! could synchronize with that one instead, which is not allowed in pi calculus.
Could you introduce an additional edge coming out of the 'send' and 'receive' generators to represent communication explicitly? The new reduction rule for these ternary nodes would then be dual to the one you have given for parallel composition. This eliminates some of the nondeterminism (but the commutativity of parallel composition preserves some degree of non-confluence).
I was thinking about section 3.4 of
lafont-1997-interaction-combinators.pdf
(@Robin Piedeleu )
while not explicitly categorical, the notation is the same
There are probably some fun things to work out with concerning how interaction nets relate to linear combinatory algebras via the geometry of interaction, now that I think about it.
sarahzrf said:
in the first one: what does the labelling on the wires mean? should they say "N" instead of "x"?
In the first one X is any arbitrary type. It's what Jamie showed me.
ooooooooooooh wait i see how it's a yanking now ._.
but can't that only work if the other object is also the monoidal unit?
duals are unique, aren't they? and the monoidal unit is self-dual?
sarahzrf said:
or in the 3rd one: where is N ≅ N* ⊗ P coming from?
None of this is set in stone. Given a name, you can send and receive on it, so I was trying to capture that here. A different option I considered was having ! and ? morphisms, each of which took N as an input, and were only adjoint when the names matched:
This one treats names more like variables and various other things get easier, but the adjunction is a little harder to see.
but where is N ≅ N* ⊗ P coming from?
i don't follow at all
it's not that i think there's something wrong with it, i just don't get what that might mean as an option
like, what does the map N* ⊗ P → N do?
Going the other way, given a morphism 1->N, you get a morphism 1->N* ⊗ P with an adjoint that you can use to send some other name on. So given (z) you get (z!)
the talk is about to start, i'll ask more later :T
i think i might need to look at a specific model, i may be thinking too syntactically about this
Instead of N ≅ N ⊗ P, another alternative is to use a "well-sorted" version of the calculus where each name is labeled with the sort of the names that will be sent over it. That lets us give a unique type to the morphisms x! and x?. It's very much like how untyped lambda calculus is really singly-typed lambda calculus where the one type X ≅ X -> X, but in simply-typed lambda calc everything terminates.
Also, the fact that we're distinguishing x! from x? means we're using polarized names, where you can either send on a name or receive, but not both.
Is it still not confluent when you do that? (Guessing yes.)
You are right, it is not confluent.
I've just remembered that there's a linear pi calculus that Yoshida and Honda described. It sounds like there may be something there that fits better with my diagrams.
I haven't looked at these diagrams in years because I kept running into problems, but they're so close to working that there must be something there.
I'm no expert, but it vaguely sounds to me like typed pi calculus could correspond to classical logic. But maybe there's some reason that wouldn't work out. Computational interpretations of classical logic generally lack confluence, though, I think.
I guess classical logic wouldn't have N and P, though.
Should concurrency be under "theory" or "practice"? @Mike Stay
There should be versions for both. Practice would be, e.g. implementations of actor systems, functional reactive programming, specific consensus algorithms, etc. Theory would be the formal semantics (game theoretic, category theoretic, etc), type theory, decidability, axiomatizing the notion of consensus, etc.
Yeah, there should be.. but so far we're trying to be somewhat conservative with the streams.
How about we start with theory, and we can make practice later?
Fine by me.
I was wondering what the best model of the pi-calculus was thought to be now. I saw that @John Baez in 2009 blog on the n-cafe The Pi Calculus was looking to see if there was a way to link it to symmetric monoidal categeories. Then later in 2015 @Mike Stay wrote a blog post A 2-Categorical Approach to the Pi Calculus. There is mention of a follow-up to that article, but I could not find it.
I am interested to see how this could help think about actor systems, and indeed model the WWW.
@Mike Stay and @Christian Williams were working on that for a while, but as far as I know they've stopped.
I remember watching your (John Baez') introductory talk on symmetric monoidal categories and being struck on the importance of names to link the inputs and the outputs together. I guess that is the mathematical reason for why the actor system akka.io names its actors with URLs.
It should also tie in with the analysis of linked data as a symmetric monoidal category Integrity Constraints for Linked Data where documents have incoming and outgoing links, the URLS name the composition points. And then of course RDF itself is explained in terms of symmetric monoidal categories in Knowledge Representation in Bicategories of Relations.
Great introduction from examples to Symmetric Monoidal Categories by @johncarlosbaez : their use in electrical engineering, quantum theory, programming, logic, ecology and other *open* systems with some thoughts on the 3rd law of thermodynamics. https://www.youtube.com/watch?v=DAGJw7YBy8E&t=18s
- The 🐠 BabelFish (@bblfish)In short: I also feel like there is something essential going on here with symmetric monoidal categories and the web - which feels like an actor system to me .
Here's A categorical model of an i/o-typed pi calculus just a few years ago.
Hmm, they define something they call a 'Freyd category' and give as the simplest example. (A Freyd category is actually a functor between two categories, with some properties.)
Part of their formalization uses a 'compact closed Freyd category'. I think some category theorists might set up these ideas a bit differently.
I guess it makes sense that a category that would unite functional programming and indeterministic processes would be one whose simplest example relates Set and Rel... :open_mouth:
Ken Sakayori, gave a talk on the paper: "Categorical analysis of the pi-calculus" where he looks at shortcomings of it
https://www.youtube.com/watch?v=dVnbUyT8IMw
That led to the paper Output Without Delay: A π-Calculus Compatible with Categorical Semantics. I am not sure I understand though: they work on a forwarder that does not introduce delays. If a forwarder is a message passing system then I would assume it always introduces delays.
Oh I found a talk by @Christian Williams on pi calculus :-)
https://www.youtube.com/watch?v=NTJBMbTIJis

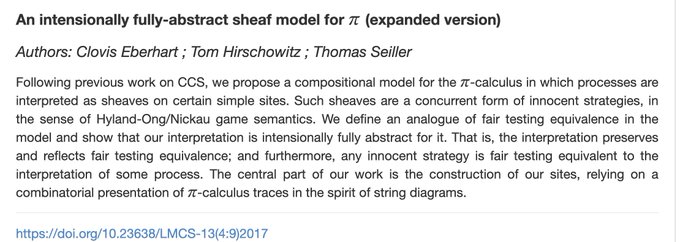

Shameful self-promotion: with @Clovis Eberhart and @Thomas Seiller, we constructed a game model of -calculus, in which strategies are presented as sheaves on a category of plays. The notion of play here means multi-party play, which includes forking (= a player dividing into two players). This is used to model parallel composition in the -calculus. And the coverage essentially says that a play is covered by its sub-views, which are individual histories of players.
As I was looking through the papers by Ken Sakayori yesterday I noticed A Truly Concurrent Game Model of the Asynchronous -Calculus. That seems to have come out at the same time as @Tom Hirschowitz's paper using sheaves. Does the game model of pi-calculus deal with "true concurrency". (I guess that is the concurrency we have one the WWW where things really do happen simultaneously).
Ok, I added your paper @Tom Hirschowitz to my Twitter thread on Actors https://twitter.com/bblfish/status/1567062264926150656
"strategies are presented as sheaves on a category of multi-party play, with forking (= a player dividing into 2) modeling parallel composition in the π-calculus. The coverage says that a play is covered by its sub-views = individual histories of players." https://lmcs.episciences.org/4069 https://twitter.com/bblfish/status/1567062264926150656/photo/1
- The 🐠 BabelFish (@bblfish)Now practically I was hoping this could help me decide when Actors would be the right abstraction to use in programming over FP Effects - such as the Cats FS2 library. But I think it is going to take quite some work to find a way from these abstractions to a coding decision...
Well it is helping in so far as dismissal of Actors on the ground that they are don't have mathematical cats support seem to be on a very weak ground now :-)
No, their paper came out two years later... and they don't cite us.
To explain a bit more, I think they don't really consider our model to be a game model because our plays do not look like standard, game-semantical plays. @Clovis Eberhart and I later argued that it is a matter of presentation.
Oh, and a second reason iirc is that we do not work out the usual "composition+hiding" pattern of game semantics.
Oh very nice :-) Thanks for those pointers.
